dora-drives is a set of operators you can use with dora to create an autonomous driving vehicle.

You can test the operators on real webcam or within Carla.

This project is in early development, and many features have yet to be implemented with breaking changes. Please don't take for granted the current design.

Documentation

The documentation can be found here: dora-rs.github.io/dora-drives

You will be able to get started using the installation section.

Operators:

Point cloud registration

PWC

Object dectection

PWC

  • Perfect detection on Carla Simulator

Traffic sign recognition

Lane detection

PWC

Drivable Area detection

PWC

Multiple Object tracking(MOT)

strong sort

PWC

Motion Planning

Path Tracking

  • Proportional Integral Derivative controller (PID)

Future operators:

⚖️ LICENSE

This project is licensed under Apache-2.0. Check out NOTICE.md for more information.

Installation

Hardware requirements

  • NVIDIA GPU with CUDA

From Docker Hub

Environments

SoftwareVersionInstallation Guide
nvidia-docker20.10.18Installation Guide

To start the docker container:

docker pull haixuantao/dora-drives
./scripts/launch.sh -s -g tutorials/carla_full.yaml

This docker image has been built with my setup and it might not work on all machines. In case it doesn't work. Please check the following From Source.

Building Docker From Source

Environments

SoftwareVersionInstallation Guide
nvidia-docker20.10.18nvidia-docker
LinuxUbuntu 20.04.5 LTS

For linux, run:

git clone git@github.com:dora-rs/dora-drives.git
cd dora-drives
./scripts/launch.sh -b -s -g tutorials/carla_full.yaml

This script has been built with my setup and you might need to install further dependencies that I have not listed, and additional configuration for cross-compiling on other OS.

If you're having build difficulties with CUDA. Check out :https://github.com/pytorch/extension-cpp/issues/71#issuecomment-1061880626 and make sure to have the exact same daemon. You will need to have /etc/docker/daemon.json to be exactly:

{
   "runtimes": {
       "nvidia": {
           "path": "nvidia-container-runtime",
           "runtimeArgs": []
       }
   },
   "default-runtime": "nvidia"
}

And restart:

sudo systemctl restart docker

Using dora-drives without Docker

SoftwareVersion TestedInstallation Guide
LinuxUbuntu 20.04.5 LTS
Miniconda22.11.1Check the Dockerfile
Pytorch1.11Installation below
CarlaCarla LeaderboardInstallation below in scripts/install.sh. Version: Leaderboard Version
NVIDIA Driver515.86.01
CUDA11.7
dora-rs0.2.0Installation below

Environments

Installation

git clone git@github.com:dora-rs/dora-drives.git

export DORA_DEP_HOME=<PATH TO A PARENT FOLDER> # Ex: $HOME/Documents
export DORA_DEP_HOME=$HOME/Documents
export CARLA_HOME=$DORA_DEP_HOME/dependencies/CARLA_0.9.13
export PYLOT_HOME=$DORA_DEP_HOME
export PYTHONPATH=$PYTHONPATH:$DORA_DEP_HOME/dependencies:$DORA_DEP_HOME/dependencies/CARLA_0.9.13/PythonAPI/carla:$DORA_DEP_HOME/dependencies/Carsmos/simulate_py37


## Add missing linux dependencies
sudo apt-get -y update
sudo apt-get -y install apt-utils git curl clang wget
sudo apt-get install -y cmake unzip libpng-dev libgeos-dev python3-opencv
sudo apt-get -y --fix-missing update && sudo apt-get install --fix-missing -y libcudnn8 ssh libqt5core5a libeigen3-dev cmake qtbase5-dev libpng16-16 libtiff5 python3-tk libgeos-dev vim build-essential libopenblas-dev libssl-dev

## Installing dependencies
conda create -n dora3.7 python=3.7 -y
conda activate dora3.7
conda install pytorch=1.11.0 torchvision=0.12.0 cudatoolkit=11.3 -c pytorch -y
pip install --upgrade pip
pip install -r install_requirements.txt
pip install -r requirements.txt


chmod +x ./scripts/*
./scripts/install.sh

## Installing Carla
cd $DORA_DEP_HOME/dependencies/
wget https://carla-releases.s3.eu-west-3.amazonaws.com/Linux/CARLA_0.9.13.tar.gz
tar -xvf CARLA_0.9.13.tar.gz
rm CARLA_0.9.13.tar.gz

## Installing dora
sudo wget https://github.com/dora-rs/dora/releases/download/v0.2.0/dora-v0.2.0-x86_64-Linux.zip && sudo unzip dora-v0.2.0-x86_64-Linux.zip -d ~/.local/bin

Uninstalling package

conda remove --name dora3.7 --all
sudo rm -rf $DORA_DEP_HOME/dependencies
rm ~/.local/bin/dora*
    ```

Getting started

This first tutorial enables to stream a video stream from a webcam from scratch.

  1. Fork this project
# Go to: https://github.com/dora-rs/dora-drives/fork
#
# Then clone your fork:
git clone git@github.com:<USERNAME>/dora-drives.git

# Add dora as a remote source to be able to fetch updates.
git remote add dora git@github.com:dora-rs/dora-drives.git

You will find the following folder structure

.
├── graphs # Example graph
├── operators # Exemple operators
├── carla # Carla nodes and operators that requires the CARLA API
├── ros # ROS based operators to bridge between ROS and dora
├── docs # This docs folder. You can replace the src file to keep your operator documented.
├── ... # utils folder
  1. To be able to run dora, you will need to start dora-coordinator and dora-daemon:
# Start the `dora-coordinator` and `dora-daemon`.
dora up
  1. To start a dataflow, you just need to pass a dataflow path.
conda activate dora3.7
dora start graphs/tutorials/webcam.yaml --attach --hot-reload --name webcam

--attach: enables you to wait for the dataflow to finish before returning.

--hot-reload: enables you to modify Python Operator while the dataflow is running.

--name: enables you to name a dataflow that might be simpler to use than the UUID.

  1. You should see a small webcam open up!

Make sure to have a webcam and cv2 install via: pip install opencv-python

  1. To stop your dataflow, you can use ctrl+c

  2. That's it! You know the basic of dora!

Making the video stream intelligent

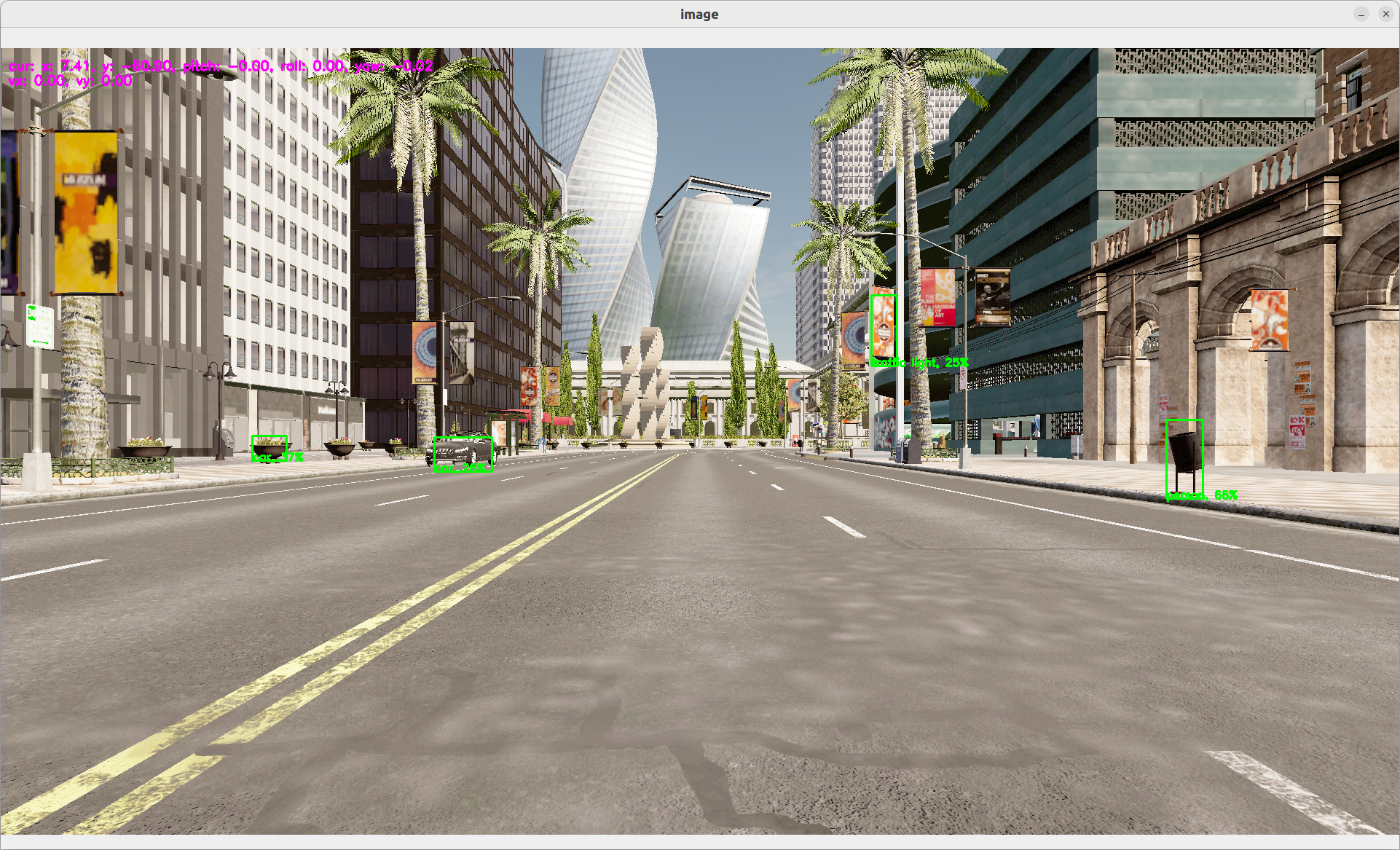

Let's add a yolov5 object detection operator that has already been written for us in ./operators/yolov5_op.py. This will help us detect object as bounding boxes within the webcam stream.

# operators/yolov5_op.py

"""
# Yolov5 operator

`Yolov5` object detection operator generates bounding boxes on images where it detects object.

More info here: [https://github.com/ultralytics/yolov5](https://github.com/ultralytics/yolov5)

`Yolov5` has not been finetuned on the simulation and is directly importing weight from Pytorch Hub.

In case you want to run `yolov5` without internet you can clone [https://github.com/ultralytics/yolov5](https://github.com/ultralytics/yolov5) and download the weights you want to use from [the release page](https://github.com/ultralytics/yolov5/releases/tag/v7.0) and then specify within the yaml graph the two environments variables:
- `YOLOV5_PATH: YOUR/PATH`
- `YOLOV5_WEIGHT_PATH: YOUR/WEIGHT/PATH`

You can also choose to allocate the model in GPU using the environment variable:
- `PYTORCH_DEVICE: cuda # or cpu`

## Inputs

- image as 1920x1080xBGR array.

## Outputs

- Bounding box coordinates as well as the confidence and class label as output.

## Graph Description

```yaml
  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: webcam/image
      python: ../../operators/yolov5_op.py

Graph Visualisation

        flowchart TB
  oasis_agent
subgraph yolov5
  yolov5/op[op]
end

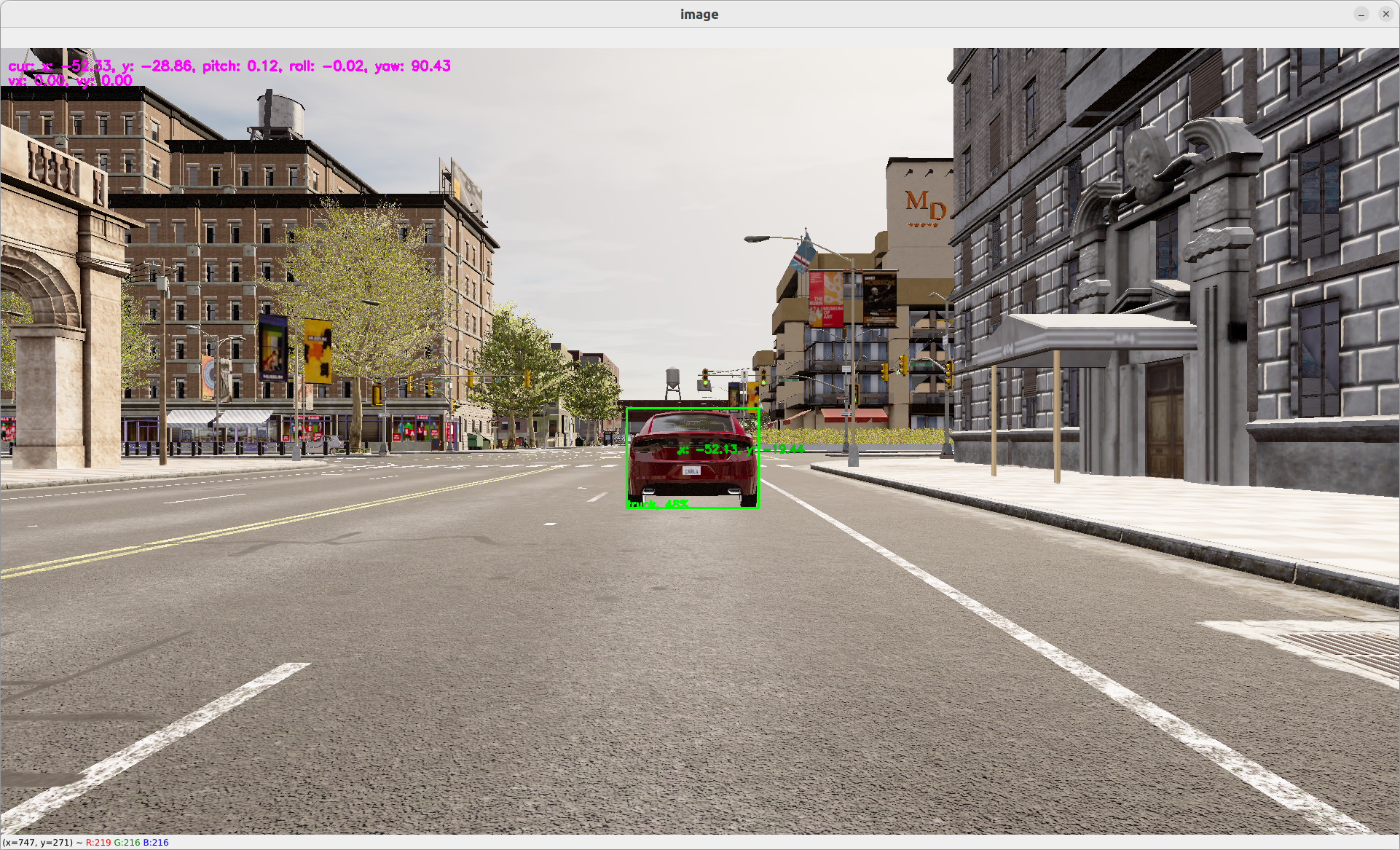

subgraph obstacle_location_op
  obstacle_location_op/op[op]
end
  oasis_agent -- image --> yolov5/op
  yolov5/op -- bbox as obstacles_bbox --> obstacle_location_op/op

"""

import os from typing import Callable

import numpy as np import pyarrow as pa import torch from dora import DoraStatus

pa.array([]) # See: https://github.com/apache/arrow/issues/34994 IMAGE_WIDTH = 1920 IMAGE_HEIGHT = 1080 DEVICE = os.environ.get("PYTORCH_DEVICE") or "cpu" YOLOV5_PATH = os.environ.get("YOLOV5_PATH") YOLOV5_WEIGHT_PATH = os.environ.get("YOLOV5_WEIGHT_PATH")

class Operator: """ Send bbox found by YOLOv5 on given image """

def __init__(self):
    if YOLOV5_PATH is None:
        # With internet
        self.model = torch.hub.load(
            "ultralytics/yolov5",
            "yolov5n",
        )
    else:
        # Without internet
        #
        # To install:
        # cd $DORA_HOME_DEP/dependecies # Optional
        # git clone https://github.com/ultralytics/yolov5.git
        # rm yolov5/.git -rf
        # Add YOLOV5_PATH and YOLOV5_WEIGHT_PATH in your YAML graph

        self.model = torch.hub.load(
            YOLOV5_PATH,
            "custom",
            path=YOLOV5_WEIGHT_PATH,
            source="local",
        )

    self.model.to(torch.device(DEVICE))
    self.model.eval()

def on_event(
    self,
    dora_event: dict,
    send_output: Callable[[str, bytes], None],
) -> DoraStatus:
    if dora_event["type"] == "INPUT":
        return self.on_input(dora_event, send_output)
    return DoraStatus.CONTINUE

def on_input(
    self,
    dora_input: dict,
    send_output: Callable[[str, bytes], None],
) -> DoraStatus:
    """
    Handle image
    Args:
        dora_input["id"] (str): Id of the input declared in the yaml configuration
        dora_input["value"] (arrow.array (UInt8)): Bytes message of the input
        send_output (Callable[[str, bytes]]): Function enabling sending output back to dora.
    """
    if dora_input["id"] == "image":
        frame = (
            dora_input["value"]
            .to_numpy()
            .reshape((IMAGE_HEIGHT, IMAGE_WIDTH, 4))
        )
        frame = frame[:, :, :3]

        results = self.model(frame)  # includes NMS
        arrays = np.array(results.xyxy[0].cpu())[
            :, [0, 2, 1, 3, 4, 5]
        ]  # xyxy -> xxyy
        arrays[:, 4] *= 100
        arrays = arrays.astype(np.int32)
        arrays = pa.array(arrays.ravel().view(np.uint8))
        send_output("bbox", arrays, dora_input["metadata"])
        return DoraStatus.CONTINUE


> Operators are composed of:
>
> `__init__` methods that help create the object.
>
> `on_event` methods that is called when an event is received.
> There is currently 4 event types:
> - `STOP`: meaning that the operator was signalled to stop.
> - `INPUT`: meannig that an input was received.
>   - You can use `dora_event['id']`, to get the id.
>   - You can use `dora_event['data']`, to get the data.
>   - You can use `dora_event['meatadata']`, to get the metadata.
> - `INPUT_CLOSED`: meannig that an input source was closed. This could be useful if the input is critical for the well behaviour of the operator.
> - `ERROR`: meaning that error message was received.
> - `UNKNOWN`: meaning that an unknown message was received.
>
> We have encapsulated `input` event in a `on_input` method but this is not required.

To add an operator within the dataflow. You need to explicit what the input and output are. You can reference node by their ids:

```yaml
# graphs/tutorials/webcam_yolov5.yaml

nodes:
  - id: webcam
    operator:
      python: ../../operators/webcam_op.py
      inputs:
        tick: dora/timer/millis/100
      outputs:
        - image
    env:
      DEVICE_INDEX: 0

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: webcam/image
      python: ../../operators/yolov5_op.py

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: webcam/image
        obstacles_bbox: yolov5/bbox

In this case, we have connected the webcam/image output to the image input of yolov5. yolov5/bbox is then connected to the plot/obstacles_bbox.

Inputs are prefixed by the node name to be able to separate name conflicts.

To run:

dora up
dora start graphs/tutorials/webcam_yolov5.yaml --attach

For more information on yolov5, go on our yolov5 detail page

Full perception

Let's add all dora-drives operators that works on image frame, which are:

  • yolov5 an object detector.
  • strong_sort a multi-object tracker.
  • yolop a lane and drivable area detector.
  • traffic_sign a traffic sign detector.

the graph will look as follows:

# graphs/tutorials/webcam_full.yaml

nodes:
  - id: webcam
    operator:
      python: ../../operators/webcam_op.py
      inputs:
        tick: dora/timer/millis/100
      outputs:
        - image
    env:
      DEVICE_INDEX: 0

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: webcam/image
      python: ../../operators/yolov5_op.py

  # - id: yolop
    # operator:
      # outputs:
        # - lanes
        # - drivable_area
      # inputs:
        # image: webcam/image
      # python: ../../operators/yolop_op.py

  ## Commented out as it takes a lot of GPU memory.
  #- id: traffic_sign
    #operator:
      #outputs:
        #- bbox
      #inputs:
        #image: webcam/image
      #python: operators/traffic_sign_op.py

  - id: strong_sort
    operator:
      outputs:
        - obstacles_id
      inputs:
        image: webcam/image
        obstacles_bbox: yolov5/bbox
      python: ../../operators/strong_sort_op.py

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: webcam/image
        obstacles_bbox: yolov5/bbox
       # traffic_sign_bbox: traffic_sign/bbox
       # lanes: yolop/lanes
       # drivable_area: yolop/drivable_area
        obstacles_id: strong_sort/obstacles_id

dora start graphs/tutorials/webcam_full.yaml --attach

I'm currently having issue running all nodes behind the GFW. You can look into it for inspiration.

Nice 🥳 As you can see, the value of dora comes from the idea that you can compose different algorithm really quickly.

Carla simulator

Let's try to use a car simulator to not only do perception but also control.

Carla Setup

In the rest of the tutorial, we will accept that you have a carla simulator running at localhost:2000 the default carla configuration.

To start a simulator make sure you have carla installed. You can check the installation page if you not sure if it's installed.

You can also a docker version or any other method provided by Carla

In case you have used the installation script. You should be able to run a carla simulator using

./scripts/run_simulator.sh

You can define the VULKAN interface you want to use, using the env variable VK_ICD_FILENAMES.

Ex for NVIDIA: export VK_ICD_FILENAMES="/usr/share/vulkan/icd.d/nvidia_icd.json"

If you're using the OASIS platflorm, follow the OASIS platform to start and run your dataflow.

Switching from the

We can then switch from the webcam to the simulator in our graph.

# graphs/oasis/oasis_agent_gps.yaml

nodes:
  - id: oasis_agent
    custom:
      inputs:
        tick: dora/timer/millis/400
      outputs:
        - position
        - speed
        - image
        - objective_waypoints
        - lidar_pc
        - opendrive
      source: shell
      # With Carla_source_node
      args: python3 ../../carla/carla_source_node.py
      #
      # Or with the OASIS AGENT
      #
      # args: >
        # python3 $SIMULATE --output
        # --oasJson --criteriaConfig $CRITERIA
        # --openscenario $XOSC
        # --agent $TEAM_AGENT
        # --agentConfig $TEAM_AGENT_CONF
        # --destination $DESTINATION

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: oasis_agent/image
      python: ../../operators/yolov5_op.py
    env:
      # CUDA_VISIBLE_DEVICES: ""
      # PYTORCH_DEVICE: cuda # Uncomment if you want to use CUDA
      # YOLOV5_PATH: # /PATH/TO/YOLOv5 Ex: $DORA_DEP_HOME/dependencies/yolov5
      # YOLOV5_WEIGHT_PATH: : # /PATH/TO/YOLOv5 Ex: $ORA_DEP_HOME/dependencies/yolov5/yolov5n.pt

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: oasis_agent/image
        obstacles_bbox: yolov5/bbox
        position: oasis_agent/position

To run:

dora up
dora start graphs/oasis/oasis_agent_yolov5.yaml --attach

You should see a window showing the view from a camera within the carla simulator. On this camera stream, you should see object detection happenning.

You can ctrl+c to kill your running dataflow.

This very first step is done to show you how to connect carla simulator with dora. It does not provide any control to move the car.

Obstacle location

The carla simulator gives us the possibility to work with many more sensors than just a camera feed. We can emulate an LIDAR, IMU, Depth sensor, Segmentation sensor...

Let's use the LIDAR sensor to locate the exact position of the obstacle that has been located by yolov5.

Details on lidar point cloud: The lidar point cloud is an array of x, y, z, intensity points.

The coordinates are based on Unreal Engine coordinate system which is:

  • z is up
  • x is forward
  • y is right

More info: https://www.techarthub.com/a-practical-guide-to-unreal-engine-4s-coordinate-system/

and within carla documentation: https://carla.readthedocs.io/en/latest/ref_sensors/#lidar-sensor

You can also check velodyne reference: https://github.com/ros-drivers/velodyne/blob/master/velodyne_pcl/README.md

To get the obstacle location, we are going to compute the angle of every points in the point cloud. We can then map the angle of each pixel of the bounding box to a real point and therefore infere its location. We then transform the coordinate from the relative lIDAR coordinate system into a global coordinate system by adding the current position of the LIDAR sensor. The code can be found here: operators/obstacle_location_op.py.

To use the obstacle location, just add it to the graph with:

# graphs/oasis/oasis_agent_obstacle_location.yaml

nodes:
  - id: oasis_agent
    custom:
      inputs:
        tick: dora/timer/millis/400
      outputs:
        - position
        - speed
        - image
        - objective_waypoints
        - lidar_pc
        - opendrive
      source: shell
      # With Carla_source_node
      args: python3 ../../carla/carla_source_node.py
      #
      # Or with the OASIS AGENT
      #
      # args: >
        # python3 $SIMULATE --output
        # --oasJson --criteriaConfig $CRITERIA
        # --openscenario $XOSC
        # --agent $TEAM_AGENT
        # --agentConfig $TEAM_AGENT_CONF
        # --destination $DESTINATION

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: oasis_agent/image
      python: ../../operators/yolov5_op.py

  - id: obstacle_location_op
    operator:
      outputs:
        - obstacles
      inputs:
        lidar_pc: oasis_agent/lidar_pc
        obstacles_bbox: yolov5/bbox
        position: oasis_agent/position
      python: ../../operators/obstacle_location_op.py

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: oasis_agent/image
        obstacles_bbox: yolov5/bbox
        position: oasis_agent/position
        obstacles: obstacle_location_op/obstacles

To run:

dora up
dora start graphs/oasis/oasis_agent_obstacle_location.yaml --attach

You should be able to see a dot within the bounding box representing the estimated location in global coordinate of the obstacle.

For more information on obstacle_location, go on our obstacle_location detail page

Planning

To make the car drive itself we first need to plan the way we want to go.

GPS

To do this, we're going to use gps to trace the route from our current location to our target location.

Carla GlobalRoutePlanner enables us to get the route from two points given a map. We have encapsulated this function within operators/carla_gps_op.py.

The following operator will compute the route from the current position to the objective_waypoints given an opendrive map.

  - id: carla_gps_op
    operator:
      python: ../../carla/carla_gps_op.py
      outputs:
        - gps_waypoints
      inputs:
        opendrive: oasis_agent/opendrive
        objective_waypoints: oasis_agent/objective_waypoints
        position: oasis_agent/position

The waypoints are defined as a an array of x, y, speed as float32 waypoints, with global coordinates.

For more information on gps, go on our gps detail page

Planner

The GPS waypoints does not take into account obstacles. To avoid collision, we can implement a motion planner that can avoid obstacles.

We're going to reuse a model called fot (Frenet Optimal Trajectory) as a black box, that take as input a starting location and a goal waypoints, as well as a list of obstacles and outputs the best waypoints to follow.

  - id: fot_op
    operator:
      python: operators/fot_op.py
      outputs:
        - waypoints
      inputs:
        position: oasis_agent/position
        obstacles: obstacle_location_op/obstacles
        gps_waypoints: carla_gps_op/gps_waypoints

To test both functionallities:

dora up
dora start graphs/oasis/oasis_agent_planning.yaml --attach

For more information on fot, go on our fot detail page

Control

PID Controller

To translate our waypoints to throttle, steering and brake control, we're using a Proportional Integral Derivative (PID) controller that is able to adjust the throttle, steering and breaking according to the car position and speed by comparing it to the desired waypoints. The code can be found in operator/pid_control_op.py.

For more information on pid, go on our pid detail page

Control

The actual command being applied to the car is controlled within the oasis_agent.

Fully looped graph

We have now all our starter kit node. They will look like this:

# graphs/oasis/oasis_agent.yaml

nodes:
  - id: oasis_agent
    custom:
      inputs:
        control: pid_control_op/control
        tick: dora/timer/millis/400
      outputs:
        - position
        - speed
        - image
        - objective_waypoints
        - lidar_pc
        - opendrive
      source: shell
      # args: >
        # python3 $SIMULATE --output
        # --oasJson --criteriaConfig $CRITERIA
        # --openscenario $XOSC
        # --agent $TEAM_AGENT
        # --agentConfig $TEAM_AGENT_CONF
        # --destination $DESTINATION
      #
      # or for Carla Standalone:
      #
      args: python3 ../../carla/carla_source_node.py

  - id: carla_gps_op
    operator:
      python: ../../carla/carla_gps_op.py
      outputs:
        - gps_waypoints
      inputs:
        opendrive: oasis_agent/opendrive
        objective_waypoints: oasis_agent/objective_waypoints
        position: oasis_agent/position

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: oasis_agent/image
      python: ../../operators/yolov5_op.py
    env:
      # CUDA_VISIBLE_DEVICES: ""
      PYTORCH_DEVICE: cuda

  - id: obstacle_location_op
    operator:
      outputs:
        - obstacles
      inputs:
        lidar_pc: oasis_agent/lidar_pc
        obstacles_bbox: yolov5/bbox
        position: oasis_agent/position
      python: ../../operators/obstacle_location_op.py

  - id: fot_op
    operator:
      python: ../../operators/fot_op.py
      outputs:
        - waypoints
      inputs:
        position: oasis_agent/position
        speed: oasis_agent/speed
        obstacles: obstacle_location_op/obstacles
        gps_waypoints: carla_gps_op/gps_waypoints

  - id: pid_control_op
    operator:
      python: ../../operators/pid_control_op.py
      outputs:
        - control
      inputs:
        position: oasis_agent/position
        speed: oasis_agent/speed
        waypoints: fot_op/waypoints

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: oasis_agent/image
        obstacles_bbox: yolov5/bbox
        obstacles: obstacle_location_op/obstacles
        gps_waypoints: carla_gps_op/gps_waypoints
        position: oasis_agent/position
        waypoints: fot_op/waypoints
        control: pid_control_op/control

To run a running car example:

dora up
dora start graphs/oasis/oasis_agent.yaml --attach

😎 We now have a working autonomous car!

You might have noticed that improvement can be done in many place.

In case you need inspiration, we advise you check:

  • operators/yolop_op.py that enables you to detect lanes. It can be passed to the obstacle location to get the 3D position of the lanes. Those 3D position of lanes can then be passed to fot to plan by taking into account lanes on the floor.
  • operators/strong_sort.py that enables tracking 2D bounding box through times. This can be useul if you want to avoid moving vehicles.
  • opertators/traffic_sign.py that is self-trained traffic light detection based on yolov7 and tt100k. THis can be useful to avoid traffic light.

GPS operator

The GPS Operator take a map a current position and wished waypoints and compute the best route to go to the wished waypoint.

It does by using carla.GlobalRoutePlanner. This modules takes an opendrive map as an input and can compute most efficient route between two points.

  • The caching of result such that we don't compute it every single time. The computation of route is really costly.
# Used cached waypoints but start at closest point.
if len(self.waypoints) != 0:
    (index, _) = closest_vertex(
        self.waypoints,
        np.array([self.position[:2]]),
    )

    self.waypoints = self.waypoints[
        index : index + NUM_WAYPOINTS_AHEAD
    ]
    self.target_speeds = self.target_speeds[
        index : index + NUM_WAYPOINTS_AHEAD
    ]
  • The computation of the gps waypoints happens here:
# Compute the waypoints
waypoints = self.hd_map.compute_waypoints(
    [
        x,
        y,
        self._goal_location[2],
    ],
    self._goal_location,

Sometimes the computation might put the position on the wrong side of the road. I have put a failsafe mecanism, but that might have other consequences. You can try to revisit this part. To increase the precision of the map, you can change the parameters in _hd_map.py:

       self._grp = GlobalRoutePlanner(
           self._map, 1.0
       )  # Distance between waypoints

Graph Description

  - id: carla_gps_op
    operator:
      python: ../../carla/carla_gps_op.py
      outputs:
        - gps_waypoints
      inputs:
        opendrive: oasis_agent/opendrive
        objective_waypoints: oasis_agent/objective_waypoints
        position: oasis_agent/position

Graph Viz

        flowchart TB
  oasis_agent
subgraph fot_op
  fot_op/op[op]
end
subgraph carla_gps_op
  carla_gps_op/op[op]
end
  oasis_agent -- objective_waypoints --> carla_gps_op/op
  oasis_agent -- opendrive --> carla_gps_op/op
  oasis_agent -- position --> carla_gps_op/op
  carla_gps_op/op -- gps_waypoints --> fot_op/op

Yolov5 operator

Yolov5 object detection operator generates bounding boxes on images where it detects object.

More info here: https://github.com/ultralytics/yolov5

Yolov5 has not been finetuned on the simulation and is directly importing weight from Pytorch Hub.

In case you want to run yolov5 without internet you can clone https://github.com/ultralytics/yolov5 and download the weights you want to use from the release page and then specify within the yaml graph the two environments variables:

  • YOLOV5_PATH: YOUR/PATH
  • YOLOV5_WEIGHT_PATH: YOUR/WEIGHT/PATH

You can also choose to allocate the model in GPU using the environment variable:

  • PYTORCH_DEVICE: cuda # or cpu

The image size must be specified in order to work. By default it is 1920x1080xBGR.

Inputs

  • image as1920x1080xBGR array.

Outputs

  • Bounding box coordinates as well as the confidence and class label as output.

Graph Description

  - id: yolov5
    operator:
      outputs:
        - bbox
      inputs:
        image: oasis_agent/image
      python: ../../operators/yolov5_op.py
    env:
      PYTORCH_DEVICE: cuda
      YOLOV5_PATH:       /home/dora/workspace/simulate/team_code/dependencies/yolov5
      YOLOV5_WEIGHT_PATH:  /home/dora/workspace/simulate/team_code/dependencies/yolov5/yolov5n.pt

Graph Viz

        flowchart TB
  oasis_agent
subgraph yolov5
  yolov5/op[op]
end
subgraph obstacle_location_op
  obstacle_location_op/op[op]
end
  oasis_agent -- image --> yolov5/op
  yolov5/op -- bbox as obstacles_bbox --> obstacle_location_op/op

Obstacle location operator

The obstacle location operator match bounding box with depth frame to find an approximative position of obstacles.

There is two logic within it:

  • One is for the ground dot for lane detection.
  • One is for bounding box obstacle localisation.

Both logic are based on he computation of the projection in 2D space of the lidar 3D point and then reusing the index to get the 3D position.

  • In the case of ground dot detection, the approximation is based on a knnr, as we might not have enough data on the floor.
  • In the case of bounding box, we use first quantile closest point within the bounding box to estimate the distance. We use the first quantile closest point to remove the noise.

The mecanism to project the lidar point cloud into a 2D is also used in the plot.py operator. You can use the input lidar_pc within it to help you debug.

Inputs

  • 2D Obstacles bounding box.

Outputs

  • 3D position of obstacles as dot.

Graph Description

  - id: obstacle_location_op
    operator:
      outputs:
        - obstacles
      inputs:
        lidar_pc: oasis_agent/lidar_pc
        obstacles_bbox: yolov5/bbox
        position: oasis_agent/position
      python: ../../operators/obstacle_location_op.py

Graph Viz

        flowchart TB
  oasis_agent
subgraph yolov5
  yolov5/op[op]
end
subgraph fot_op
  fot_op/op[op]
end
subgraph obstacle_location_op
  obstacle_location_op/op[op]
end
  oasis_agent -- lidar_pc --> obstacle_location_op/op
  yolov5/op -- bbox as obstacles_bbox --> obstacle_location_op/op
  oasis_agent -- position --> obstacle_location_op/op
  obstacle_location_op/op -- obstacles --> fot_op/op

Depth estimation example

MiDaS models for computing relative depth from a single image.

MiDaS computes relative inverse depth from a single image. The repository provides multiple models that cover different use cases ranging from a small, high-speed model to a very large model that provide the highest accuracy. The models have been trained on 10 distinct datasets using multi-objective optimization to ensure high quality on a wide range of inputs. Let's add all dora-drives operators that works on image frame, which are:

  • webcam plug in a camera.
  • midas_op computing relative depth from a single image.
  • plot take almost all output from the graph and plot it on the camera frame.

the graph will look as follows:

# graphs/tutorials/webcam_midas_frame.yaml

nodes:
  - id: webcam
    operator:
      python: ../../operators/webcam_op.py
      inputs:
        tick: dora/timer/millis/100
      outputs:
        - image
    env:
      DEVICE_INDEX: 0

  - id: midas_op
    operator:
      outputs:
        - depth_frame
      inputs:
        image: webcam/image
      python: ../../operators/midas_op.py
    env:
      PYTORCH_DEVICE: "cuda"
      MIDAS_PATH: $DORA_DEP_HOME/dependencies/MiDaS/
      MIDAS_WEIGHT_PATH: $DORA_DEP_HOME/dependencies/MiDaS/weights/midas_v21_small_256.pt
      MODEL_TYPE: "MiDaS_small"
      MODEL_NAME: "MiDaS_small"

  - id: plot
    operator:
      python: ../../operators/plot.py
      inputs:
        image: midas_op/depth_frame

MiDaS source code:

You need to link the network to load the algorithm model. If you are in mainland China, you may need a network proxy to speed up the download.

optional: Of course, you can also download it in advance and place it under the specified directory. The operation steps are as follows:

cd $DORA_DEP_HOME/dependencies/
git clone git@github.com:isl-org/MiDaS.git
cd MiDaS/weights
# If you don't want to add manual download, the program will also automatically download the model file
wget https://github.com/isl-org/MiDaS/releases/download/v2_1/midas_v21_small_256.pt
cp midas_v21_small_256.pt $HOME/.cache/torch/hub/checkpoints/

At the same time, open the following comments in the dataflow configuration file # graphs/tutorials/webcam_midas_frame.yaml

      MIDAS_PATH: $DORA_DEP_HOME/dependencies/MiDaS/
      MIDAS_WEIGHT_PATH: $DORA_DEP_HOME/dependencies/MiDaS/weights/midas_v21_small_256.pt
      MODEL_TYPE: "MiDaS_small"
      MODEL_NAME: "MiDaS_small"
  • model_type = "DPT_Large" # MiDaS v3 - Large (highest accuracy, slowest inference speed)
  • model_type = "DPT_Hybrid" # MiDaS v3 - Hybrid (medium accuracy, medium inference speed)
  • model_type = "MiDaS_small" # MiDaS v2.1 - Small (lowest accuracy, highest inference speed)

Custom configuration

  1. Pick one or more models, You can find out more here.

  2. Other descriptive information In this case, we have connected the webcam/image output to the image input of midas_op. midas_op/depth_frame is then connected to the plot/image. Inputs are prefixed by the node name to be able to separate name conflicts.

To run:

dora up
dora start graphs/tutorials/webcam_midas_frame.yaml --attach --hot-reload --name dpt_midas

Display as follows:

I'm currently having issue running all nodes behind the GFW. You can look into it for inspiration.

Nice 🥳 As you can see, the value of dora comes from the idea that you can compose different algorithm really quickly.

FOT operator

The Frenet Optimal Planner Operator is based on https://github.com/erdos-project/frenet_optimal_trajectory_planner/ and wrap the different elements obstacles, position, speed ... into a frenet consumable format.

FOT inputs are:

initial_conditions = {
    "ps": 0,
    "target_speed": # The target speed
    "pos": # The x, y current position
    "vel": # The vx, vy current speed
    "wp": # [[x, y], ... n_waypoints ] desired waypoints
    "obs": # [[min_x, min_y, max_x, max_y], ... ] obstacles on the way
}

There is also a set of hyperparameters that are described below.

As our obstacles are defined as 3D dot we need to transform those dot into [min_x, min_y, max_x, max_y] format. We do that within the get_obstacle_list function. This approximation is very basic and probably need to be revisited.

The output is either a successful trajectory that we can feed into PID. Or it is a failure in which case we send the current position as waypoint.

Graph Description

  - id: fot_op
    operator:
      python: ../../operators/fot_op.py
      outputs:
        - waypoints
      inputs:
        position: oasis_agent/position
        speed: oasis_agent/speed
        obstacles: obstacle_location_op/obstacles
        gps_waypoints: carla_gps_op/gps_waypoints

Graph Viz

        flowchart TB
  oasis_agent
subgraph carla_gps_op
  carla_gps_op/op[op]
end
subgraph fot_op
  fot_op/op[op]
end
subgraph obstacle_location_op
  obstacle_location_op/op[op]
end
subgraph pid_control_op
  pid_control_op/op[op]
end
  carla_gps_op/op -- gps_waypoints --> fot_op/op
  obstacle_location_op/op -- obstacles --> fot_op/op
  oasis_agent -- position --> fot_op/op
  oasis_agent -- speed --> fot_op/op
  fot_op/op -- waypoints --> pid_control_op/op

Hyperparameter descriptions

        initial_conditions (dict): dict containing the following items
            ps (float): previous longitudinal position
            target_speed (float): target speed [m/s]
            pos (np.ndarray([float, float])): initial position in global coord
            vel (np.ndarray([float, float])): initial velocity [m/s]
            wp (np.ndarray([float, float])): list of global waypoints
            obs (np.ndarray([float, float, float, float])): list of obstacles
                as: [lower left x, lower left y, upper right x, upper right y]
        hyperparameters (dict): a dict of optional hyperparameters
            max_speed (float): maximum speed [m/s]
            max_accel (float): maximum acceleration [m/s^2]
            max_curvature (float): maximum curvature [1/m]
            max_road_width_l (float): maximum road width to the left [m]
            max_road_width_r (float): maximum road width to the right [m]
            d_road_w (float): road width sampling discretization [m]
            dt (float): time sampling discretization [s]
            maxt (float): max prediction horizon [s]
            mint (float): min prediction horizon [s]
            d_t_s (float): target speed sampling discretization [m/s]
            n_s_sample (float): sampling number of target speed
            obstacle_clearance (float): obstacle radius [m]
            kd (float): positional deviation cost
            kv (float): velocity cost
            ka (float): acceleration cost
            kj (float): jerk cost
            kt (float): time cost
            ko (float): dist to obstacle cost
            klat (float): lateral cost
            klon (float): longitudinal cost
    Returns:
        result_x (np.ndarray(float)): x positions of fot, if it exists
        result_y (np.ndarray(float)): y positions of fot, if it exists
        speeds (np.ndarray(float)): speeds of fot, if it exists
        ix (np.ndarray(float)): spline x of fot, if it exists
        iy (np.ndarray(float)): spline y of fot, if it exists
        iyaw (np.ndarray(float)): spline yaws of fot, if it exists
        d (np.ndarray(float)): lateral offset of fot, if it exists
        s (np.ndarray(float)): longitudinal offset of fot, if it exists
        speeds_x (np.ndarray(float)): x speeds of fot, if it exists
        speeds_y (np.ndarray(float)): y speeds of fot, if it exists
        params (dict): next frenet coordinates, if they exist
        costs (dict): costs of best frenet path, if it exists
        success (bool): whether a fot was found or not

Ref: https://github.com/erdos-project/frenet_optimal_trajectory_planner/blob/master/FrenetOptimalTrajectory/fot_wrapper.py

PID Control operator

pid control operator computes the command that needs to be executed to follow the given waypoints. It reacts to the car current speed and position in a way that accelerates or brake according to previous inputs.

Inputs

  • waypoints coordinates to follow.

Outputs

  • throttle, steering (rad) and braking.

Graph Description

  - id: pid_control_op
    operator:
      python: ../../operators/pid_control_op.py
      outputs:
        - control
      inputs:
        position: oasis_agent/position
        speed: oasis_agent/speed
        waypoints: fot_op/waypoints

Graph Viz

        flowchart TB
  oasis_agent
subgraph fot_op
  fot_op/op[op]
end
subgraph pid_control_op
  pid_control_op/op[op]
end
  oasis_agent -- position --> pid_control_op/op
  oasis_agent -- speed --> pid_control_op/op
  fot_op/op -- waypoints --> pid_control_op/op
  pid_control_op/op -- control --> oasis_agent

Hyperparameters consider changing

See: https://en.wikipedia.org/wiki/PID_controller

pid_p = 0.1
pid_d = 0.0
pid_i = 0.05
dt = 1.0 / 20

Example reaction:

Overview

        flowchart TB
  oasis_agent
subgraph carla_gps_op
  carla_gps_op/op[op]
end
subgraph yolov5
  yolov5/op[op]
end
subgraph obstacle_location_op
  obstacle_location_op/op[op]
end
subgraph fot_op
  fot_op/op[op]
end
subgraph pid_control_op
  pid_control_op/op[op]
end
subgraph ___dora___ [dora]
  subgraph ___timer_timer___ [timer]
    dora/timer/secs/1[\secs/1/]
  end
end
  pid_control_op/op -- control --> oasis_agent
  dora/timer/secs/1 -- tick --> oasis_agent
  oasis_agent -- objective_waypoints --> carla_gps_op/op
  oasis_agent -- opendrive --> carla_gps_op/op
  oasis_agent -- position --> carla_gps_op/op
  oasis_agent -- image --> yolov5/op
  oasis_agent -- lidar_pc --> obstacle_location_op/op
  yolov5/op -- bbox as obstacles_bbox --> obstacle_location_op/op
  oasis_agent -- position --> obstacle_location_op/op
  carla_gps_op/op -- gps_waypoints --> fot_op/op
  obstacle_location_op/op -- obstacles --> fot_op/op
  oasis_agent -- position --> fot_op/op
  oasis_agent -- speed --> fot_op/op
  oasis_agent -- position --> pid_control_op/op
  oasis_agent -- speed --> pid_control_op/op
  fot_op/op -- waypoints --> pid_control_op/op

Data format

All messages should be byte messages.

Best practice is to use C-order numpy arrays bytes.

they can be generated via the .tobytes() method from numpy arrays.

They can be read via np.frombuffer.

Currently used message format

## position of the car (1, 7)
### qx, qy, qz, qw are angles quaternion.
position = np.array([x, y, z, qx, qy, qz, qw])

## frames (HEIGHT, WIDTH, 4)
frame = np.array([[[b, g, r, i], ... n_width ... ], ... n_height ... ])

## Obstacles without location (-1, 6)
bbox_2d = np.array([[min_x, max_x, min_y, max_y, confidence, label], ... n_bbox ... ])

## Obstacles with locations (-1, 5)
obstacles = np.array([[x, y, z, confidence, label], ... n_obstacle ... ])

## waypoints to follow. Shape (-1, 3)
waypoints = np.array([[x, y, speed], ... n_waypoint ... ])

## control for the car (1, 3)
control = np.array([throttle, steer, brake])
